PRODUCTIBILITY OF BENDED TEMPERING

We have two options for productibility of curved glass that first one is 3300hx1200mm (bending) and as well second one is 3300hx2500mm (bending). Both heights are same but radius are changeable in accordance with glass thickness. In case doubt, please kindly send us drawing of your request to the check.

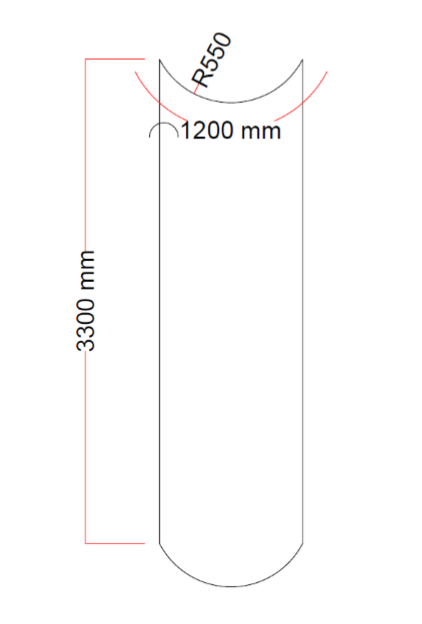

1st Option:

Max glass size 3.300 (height) x 1.200 mm (bending) Min glass size 300 (height) x450 mm (bending)

Min Bending Radius (r):

550 mm (5-6 mm) (For hole and CNC processes, please get approval.) 1.000 mm (4-8 mm) * 4 mm single piece should be less than 2,5 m2. 1.200 mm (10 mm) 1.500 mm(12 mm) 1.500 mm (15 mm) (Please get approval)

Curved glass

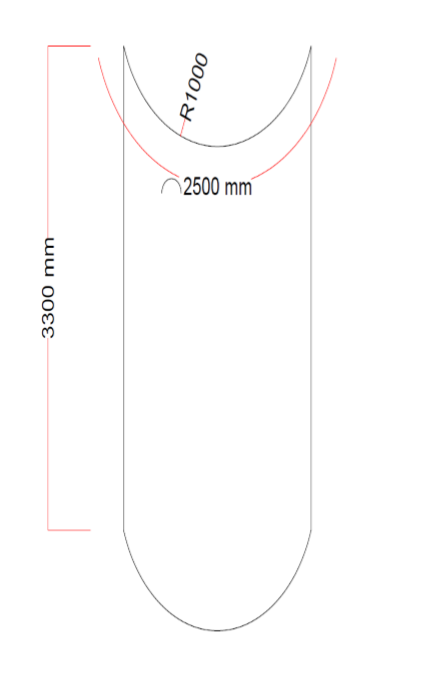

2nd Option:

Max glass size 3.300 (height) x 2.500 mm (bending) Min glass size 300 (height) x450 mm (bending)

Min Bending Radius (r):

1.000 mm (5-6-8-10 mm) 1.500 mm (12 mm) 1.800 mm (15 mm) 2.000 mm (19 mm)
